Ultrasonic Welding Machine Ultrasonic Cooper Tube Sealing Welding Machine

Model Number XW-P2030

Quantidade

$6,500.00

~~$6,500.00~~ $6,500.00

Promoção Esgotado

Frete calculado no checkout.

Em estoque

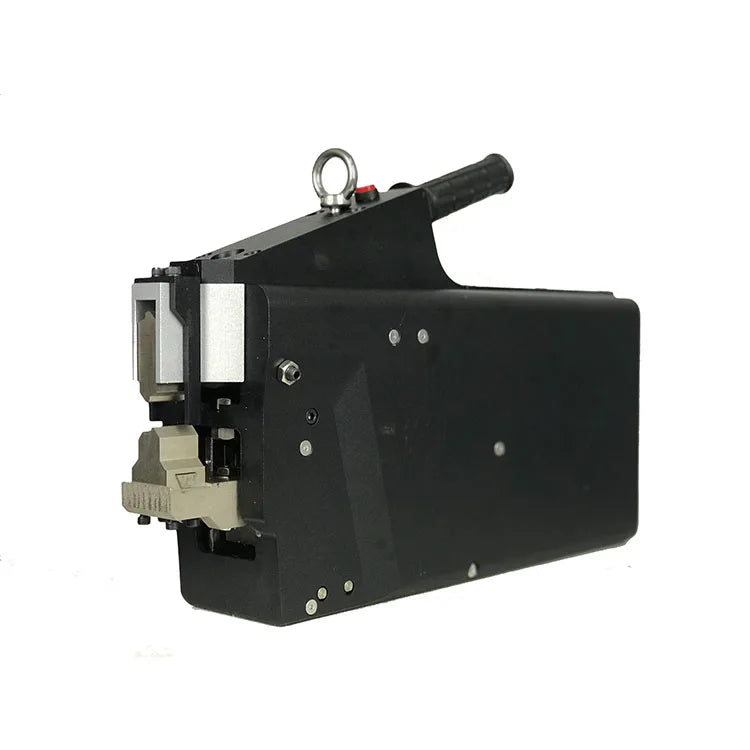

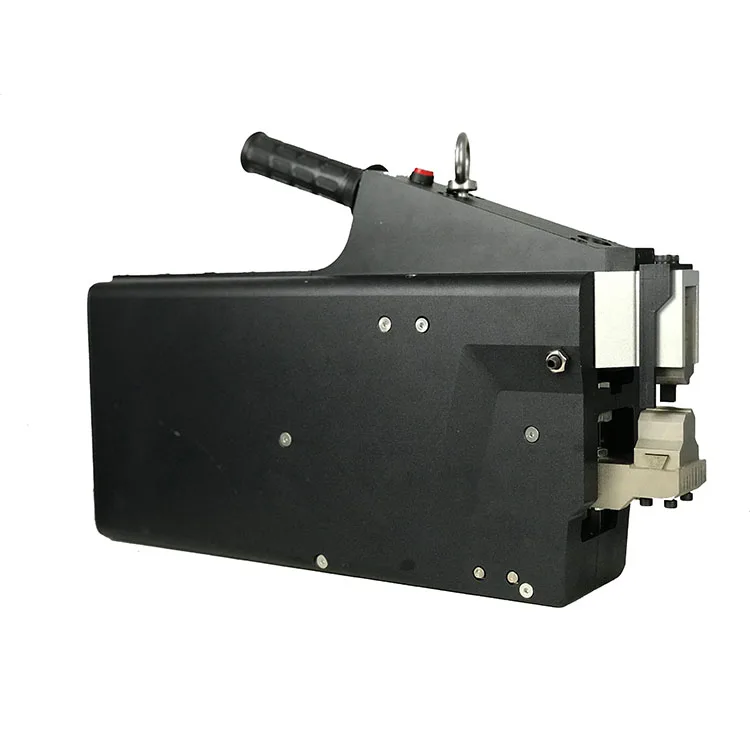

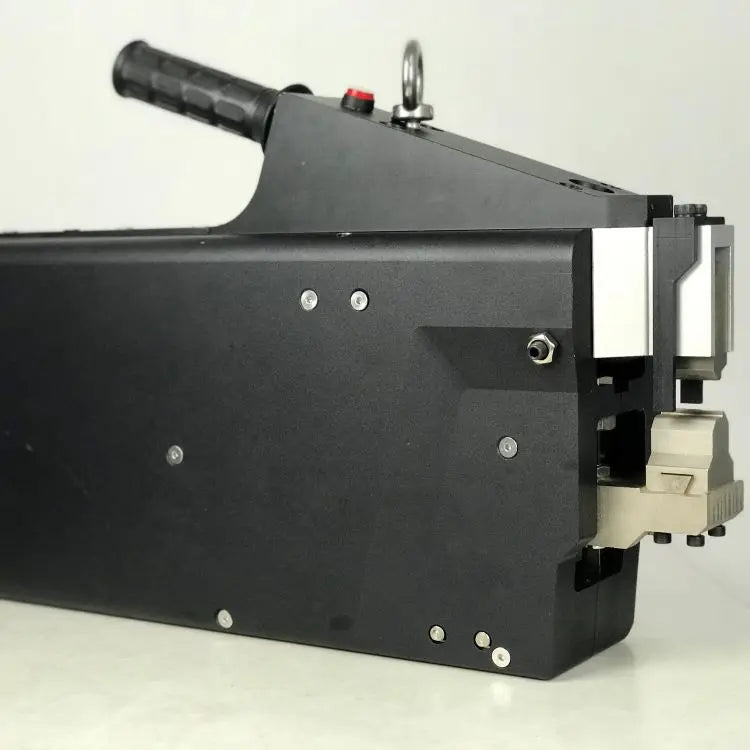

Ultrasonic Tube Sealing Machine

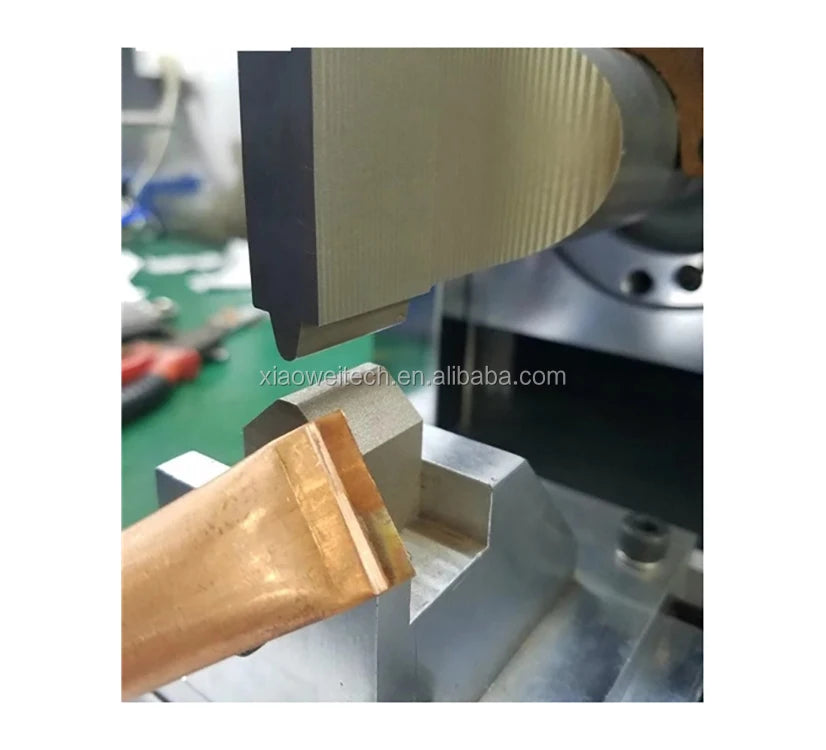

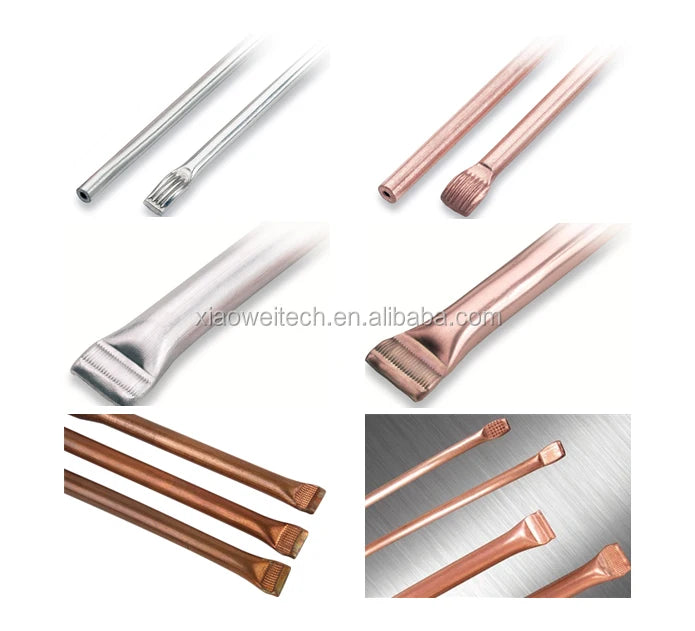

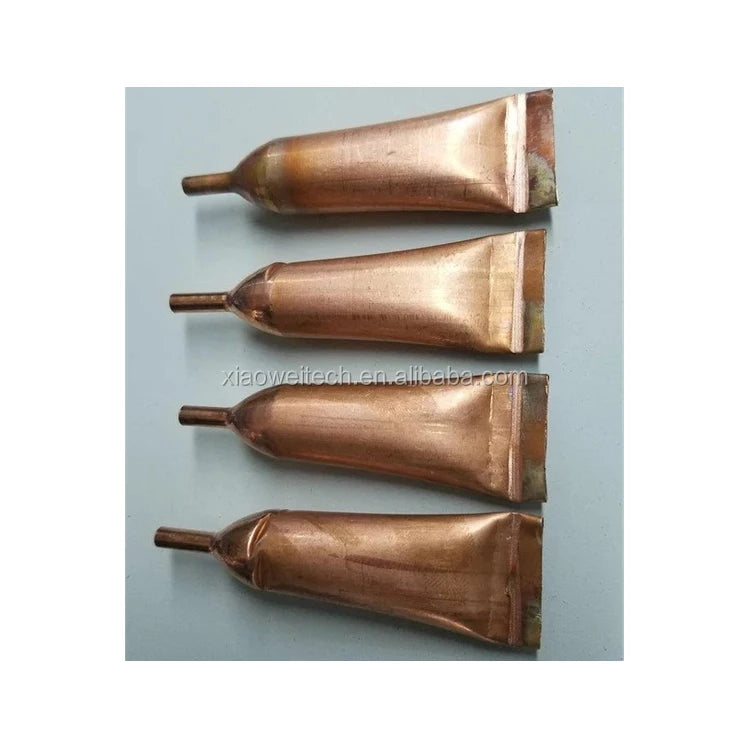

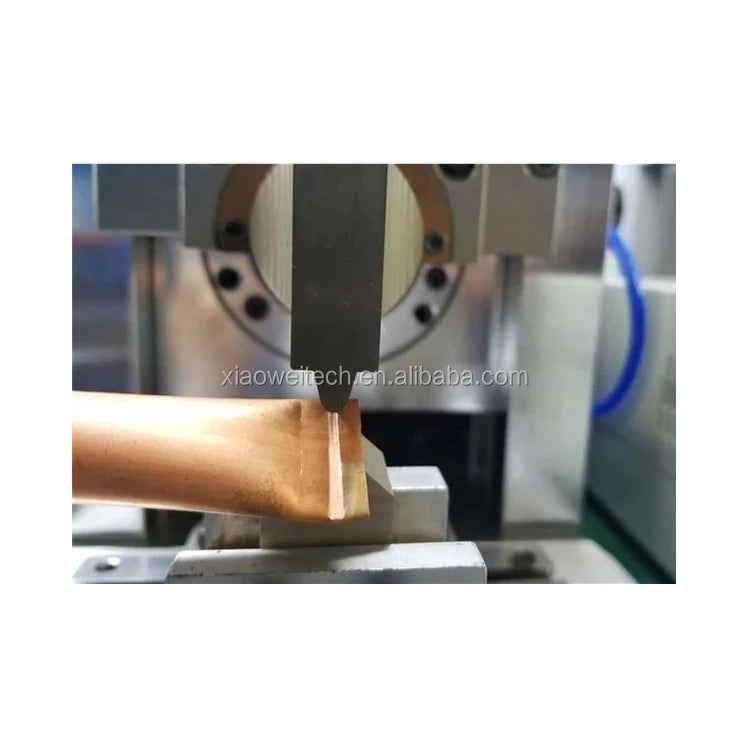

Ultrasonic sealing systems hermetically seal copper and aluminum tubes. A one-step operation crimps, seals and cuts off charged tubes in under one second. Systems are suited to automation for high levels of efficiency and productivity. The 20kHz portable ultrasonic metal tube sealer specifically designed for explosive environments and can seal copper tubes up to 12mm in diameter. Its precise controls ensure consistent seals and are not operator-dependent, unlike alternative brazing processes. Applications include sealing charged tubes used in refrigerators, air conditioners and bulb temperature sensors, as well as capillary tubes.

Ultrasonic Tube Sealing Machine

No	Item	XW-P2040
1	Ultrasonic frequency	20KHZ
2	Power	4000W
3	Voltage	AC 110V/220V 50/60hz
4	Air pressure	0.3-0.6 Mpa
5	Generator Type	Digital auto frequency tracking, can be adjusted the output amplitude from 5% to 100%
6	Automatic frequency tracking accuracy	±5HZ
7	Power stability	≤ 5%
8	Remote terminal responds dynamically	≤10ms
9	Overcurrent protection current	10A
10	Overcurrent protection time	100ms
11	Size	Controller: 420mm(L) * 380mm(W) 200mm(H) Welder: 510mm(L) 280mm(W) *210mm(H)
12	Weight	Welder : 35kg, Controller : 10kg
13	Warranty	One year warranty with lifetime support
