22kw 3 phase portable type 2 ac ev portable ev charging station
22kw 3 phase portable type 2 ac ev portable ev charging station
Regular price
$166.00
Regular price
$166.00
Sale price
$166.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock
|
Model
|
BMBK11T2-17
|
BMBK22T2-18
|
||
|
Technical Features
|
|
|
||
|
Category
|
IEC62196-2 Type 2
|
|
||
|
Power Capacity
|
11KW
|
22KW
|
||
|
Input max current
|
16A 3phases
|
32A 3phases
|
||
|
Voltage
|
380VAC±10%
|
380VAC±10%
|
||
|
Adjustment Current
|
8A-10A-13A-16A
|
8A-10A-13A-16A-32A
|
||
|
Rated Frequency
|
50/60HZ
|
|
||
|
RCD
|
Type A+DC 6Ma (Optional)
|
|
||
|
Relative Humidty
|
0-95%
|
|
||
|
Connector Type
|
IEC62196-2 , 5meters/customize TPU (TUV Certificate)
|
|
||
|
Connector Mechanical Operating Life
|
>10000 times
|
|
||
|
User Interface & Control
|
|
|
||
|
Cummunication Interface
|
Bluetooth /WIFI /APP (Optional)
|
|
||
|

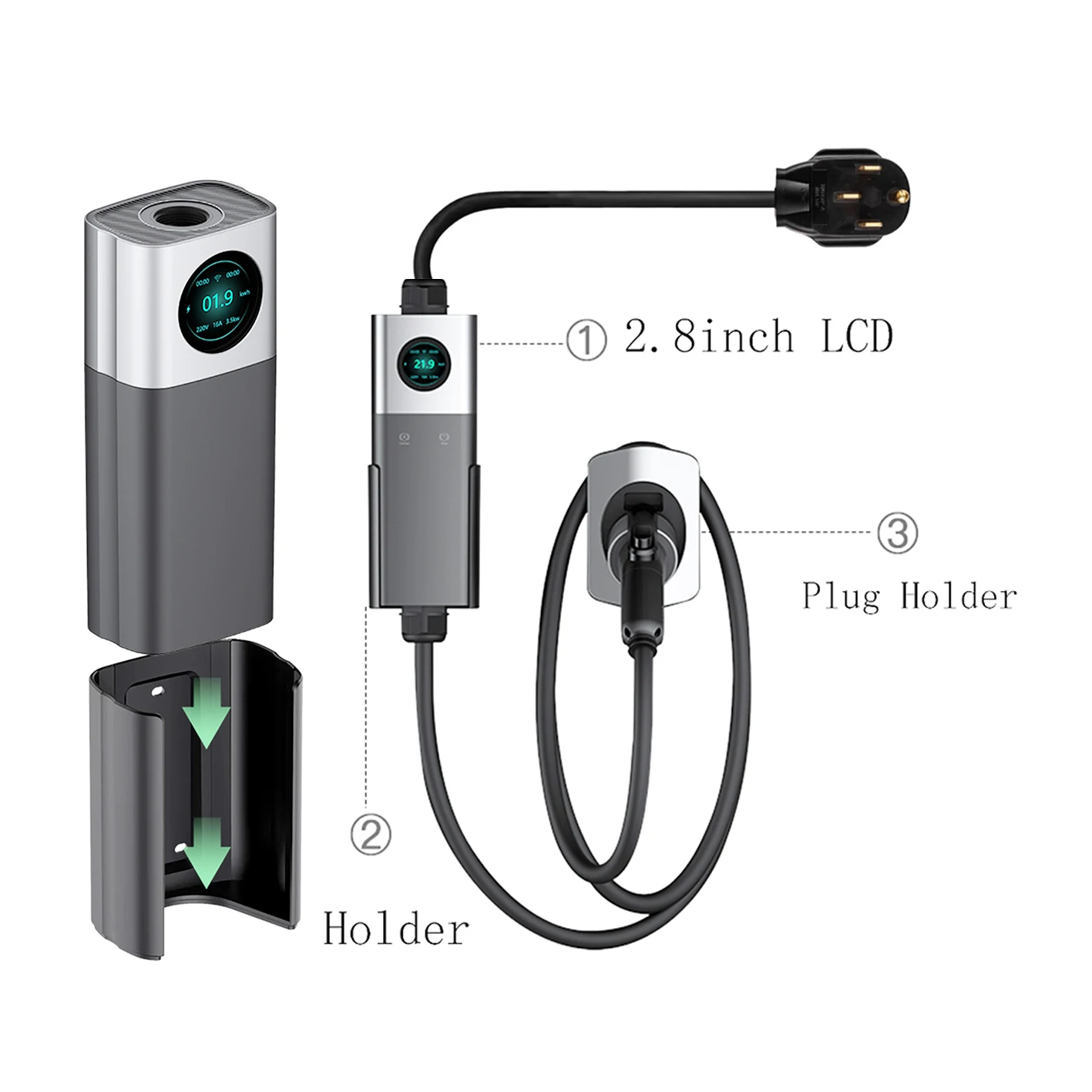

Display Screen
|
LCD 2.8inch /LED
|
|
||
|
Storage Temperature
|
-40 to 75℃ Ambient
|
|
||
|
Operating Temperature
|
-30 to 55℃ Ambient
|
|
||
|
Operating Humidity
|
Up to 95% Non-condensing
|
|
||
|
Altitude
|
≤2000m
|
|
||
|
Cooling Method
|
Natural Cooling
|
|
||
|
Protection Ratings
|
IP66
|
|
||
|
Protection
|
Short circuit, over voltage, over current, leakage over emperature, lighting protection, Ground insulation monitoring etc.
|
|
||
|
Certificate
|
CE ROHS UKCA CB
|
|
||
