50kw 70kw 120kw 240kw 480kw Ocpp Ev Charging Station Ccs
50kw 70kw 120kw 240kw 480kw Ocpp Ev Charging Station Ccs
정가
$6,500.00
정가
$0.00
할인가
$6,500.00
단가
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
재고 있음
Products Description
|
Product number
|
|
KY-DC-60KW
|
KY-DC-80KW
|
KY-DC-120KW
|
||
|
Detailed specification
|
rated power
|
60KW
|
80KW
|
120KW
|
||
|
Charging equipment
|
User Interface
|
7 inch LCD color display touch screen
|
|
|
||
|
|
installation
|
Floor-standing/Down in down out
|
|
|
||
|
|
Routing mode device size
|
635*423*1600(mm)
|
|
|
||
|
|
Input voltage
|
AC380V±20%
|
|
|
||
|
|
Input frequency
|
45~65Hz
|
|
|
||
|
|
The output voltage
|
200-750VDC
|
|
|
||
|
|
Single gun output current range
|
200V-500V
|
200V-500V
|
200V-500V
|
||
|
|
The output voltage
|
0-90A
|
0-120A
|
0-160A
|
||
|
|
Single gun output current range
|
200V-750V
|
200V-750V
|
200V-750V
|
||
|
|
The output voltage
|
0-60A
|
0-80A
|
0-107A
|
||
|
Charging equipment
|
Single gun output current range
|
0-112A
|
0-150A
|
/
|
||
|
|
Cable length
|
5m
|
|
|
||
|
Electrical index
|
Measurement accuracy
|
Level 0.5
|
|
|
||
|
|
Current limit protection value
|
≥110%
|
|
|
||
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
|
||
|
|
Steady flow accuracy
|
≤±1%
|
|
|
||
|
|
Ripple coefficient
|
≤±0.5%
|
|
|
||
|
|
effectiveness
|
≥94.5%
|
|
|
||
|
|
Power factor
|
≥0.99 (50% load or more)
|
|
|
||
|
|
Harmonic content THD
|
≤5% (50% load or more)
|
|
|
||
|
feature design
|
HMI
|
7 inch LCD color display touch screen, LED indicator
|
|
|
||
|
|
Charging mode
|
Auto full / fixed power / fixed amount / fixed time
|
|
|
||
|
|

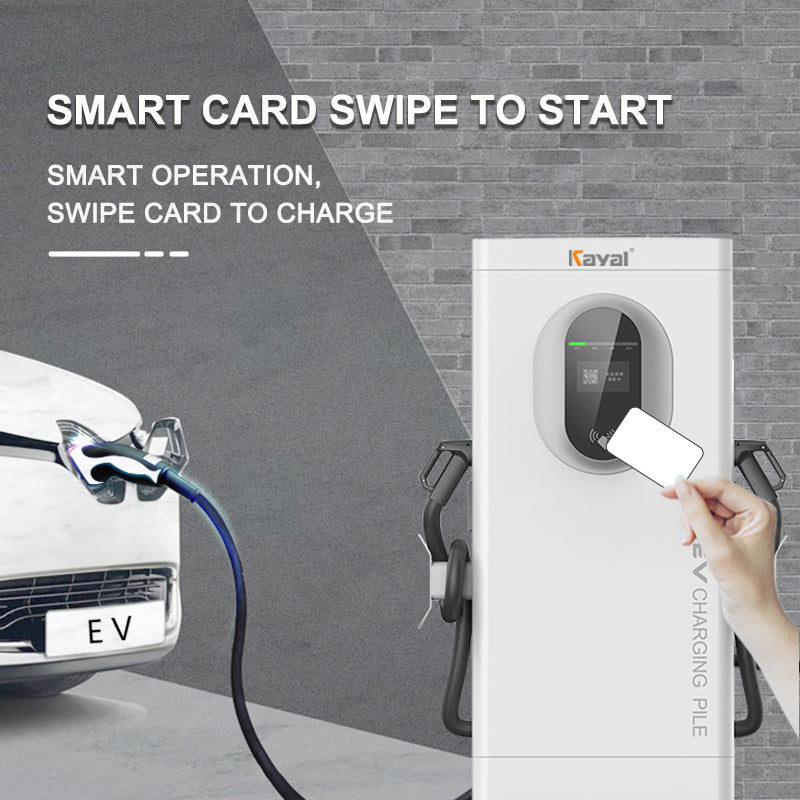

payment method
|
Credit card payment / APP payment /
scan code payment
|
|
|
||
|
|
Communication Interface
|
Ethernet 2/3/4G (optional)
|
|
|
||
|
Safety design
|
Executive standard
|
GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008
|
|
|
||
|
|
security function
|
Charge gun temperature detection,
overvoltage protection,
undervoltage protection,
overload protection,
short circuit protection,
grounding protection,
over temperature protection,
low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,
emergency stop protection,
leakage protection
|
|
|
||
|
Environmental indicators
|
Operating temperature
|
-25°C~+50°C
|
|
|
||
|
|
Working humidity
|
5%~95% non-condensing cream
|
|
|
||
|
|
Working elevation
|
<3000m
|
|
|
||
|
|

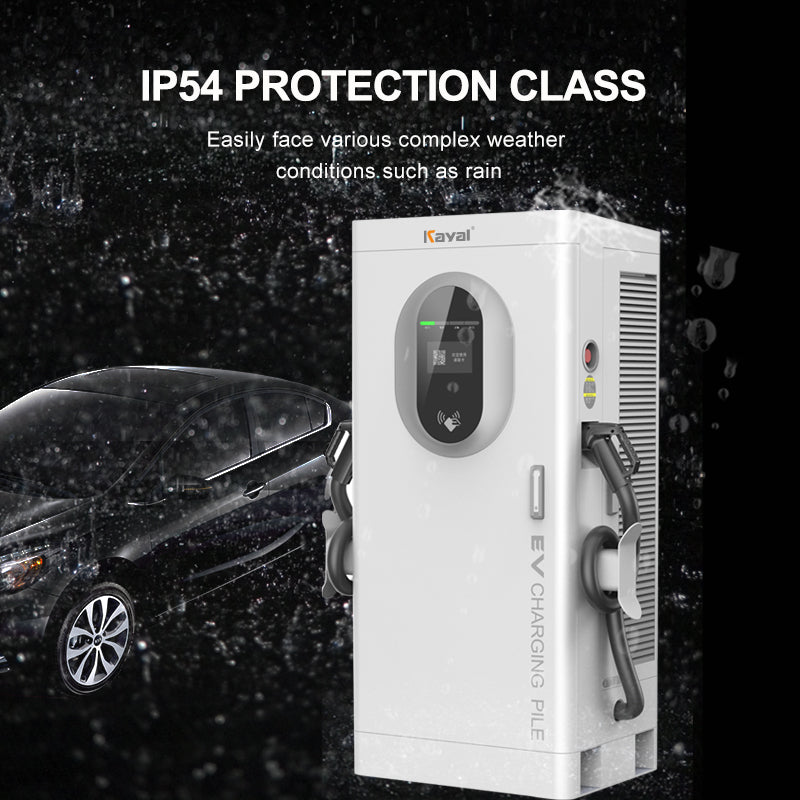

Protection level
|
IP54
|
|
|
||
|
|
cooling method
|
Forced air cooling
|
|
|
||
|
|
Noise control
|
≤60dB
|
|
|
||
|
|
MTBF
|
100,000 hours
|
|
|
||
