Q6 22kw Dc 5 Outlet Charger Rcd App Gbt Cable Extender Ev Wallbox Type 2
Regular price
$273.00
Sale price
$273.00
Regular price
$273.00
Unit price
per
Sale
Sold out
- Gobal Shipping
- Flexible Payment
- Online Service
- Estimated Delivery: Customized Support
- Free Shipping & Returns: On all orders over $200
Secured & trusted checkout with:
Key attributes
Other attributes
|
Place of Origin
|
Guangdong, China
|
|
Interface Standard
|
CCS
|
|
Output Current
|
AC
|
|
Output Power
|
7kW
|
|
Input Voltage
|
100 - 110v
|
|
Model Number
|
HC
|
|
Brand Name
|
HC
|
|
Input/Output power
|
400VAC±20%-50/60Hz-32A-3 phase
|
|
Communication
|
WIFI(Optional) APP
|
|
PEN Protection
|
Optional
|
|
Certificate
|
CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
|
|
Protection
|
IP54, IK10
|
|
Charging capacity
|
Up to 22kw
|
|
RCD
|
30Ma RCD Type A and DC 6Ma RCD function
|
|
Load balancing
|
CT+Meter(Optional)
|
|
User interface
|
LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A)
|
Packaging and delivery
|
Packaging Details
|
A: Single carton packing+pallets
B: Wooden case packing+pallets C: As customer's requirement |
Product details
Video Description
Best Selling
Product Description
Safe and fast
The best charging station for home and private use Type A+DC 6mA leakage protection
Simple and intelligent
Home use app with intelligent control the wallbox Dynamic Load Balance
Flexible Option
Type 1 or Type 2 charging cable Wall-mount or floor-stand installation
Main Parameters:
|
Datasheet
|
Model
|
7KW
|
11KW
|
22KW
|
|||
|
Input
|
Power Supply
|
L+N+PE
|
L1+L2+L3+N+PE
|
L1+L2+L3+N+PE
|
|||
|
|
Rated voltage
|
AC 230V
|
AC 400V
|
AC 400V
|
|||
|
|
Rated current
|
32A
|
16A
|
32A
|
|||
|
|
Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|||
|
Output
|
Output voltage
|
AC 240V
|
AC 400V
|
AC 400V
|
|||
|
|
Output current
|
32A
|
16A
|
32A
|
|||
|
|
Rated power
|
7KW
|
11KW
|
22KW
|
|||
|
User interface
|
Cable length
|
5M
|
|
|
|||
|
|
Outer case
|
PC9010
|
|
|
|||
|
|
LED indicator
|
Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
|
|
|
|||
|
|
Emergency stop
|
include
|
|
|
|||
|
Start-up mode
|
Plug-and-Play
|
|
|
|
|||
|
|
RFID Reader
|
|
|
|
|||
|
Network
|
4G
|
Optional
|
|
|
|||
|
|
RJ45
|
Optional
|
|
|
|||
|
|
Bluetooth/WiFi
|
Optional
|
|
|
|||
|
Security
|
RCD
|
A+DC6mA
|
|
|
|||
|
|
Ingress Protection
|
IP65
|
|
|
|||
|
|
Surge Protection
|
IK10
|
|
|
|||
|
|
Electrical Protection
|
Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant
protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel |
|
|
|||
|
|
Warranty
|
15 months
|
|
|
|||
|
|
Cooling mode
|
Natural cooling
|
|
|
|||
|
Environment
|
Installation
|
Wall-mount/Pole-mount
|
|
|
|||
|
|
Working Temperature
|
-30℃~+50℃
|
|
|
|||
|
|
Storage
temperature
|
-40℃~+80℃
|
|
|
|||
|
|
Operating humidity
|
5%~95% no moisture condensation or frost
|
|
|
|||
|
|
Working Height
|
<2000M
|
|
|
|||
|
Packing list
|
Charging pile
|
1Pcs
|
|
|
|||
|
|
Instructions
|
1Pcs
|
|
|
|||
|
|
Cable
|
1Pcs
|
|
|
|||
|
|
Plug holder
|
1Pcs
|
|
|
|||
|
|
Screw (for installation)
|
1Pcs
|
|
|
|||
|
|
Outer packaging
|
Carton
|
|
|
|||
|
Other
|
Efficiency
|
≥98
|
|
|
|||
|
|
Insulation resistance
|
≥10MΩ
|
|
|
|||
|
|
Power of control module
|
≤7W
|
|
|
|||
|
|
Terminal
|
include
|
|
|
|||

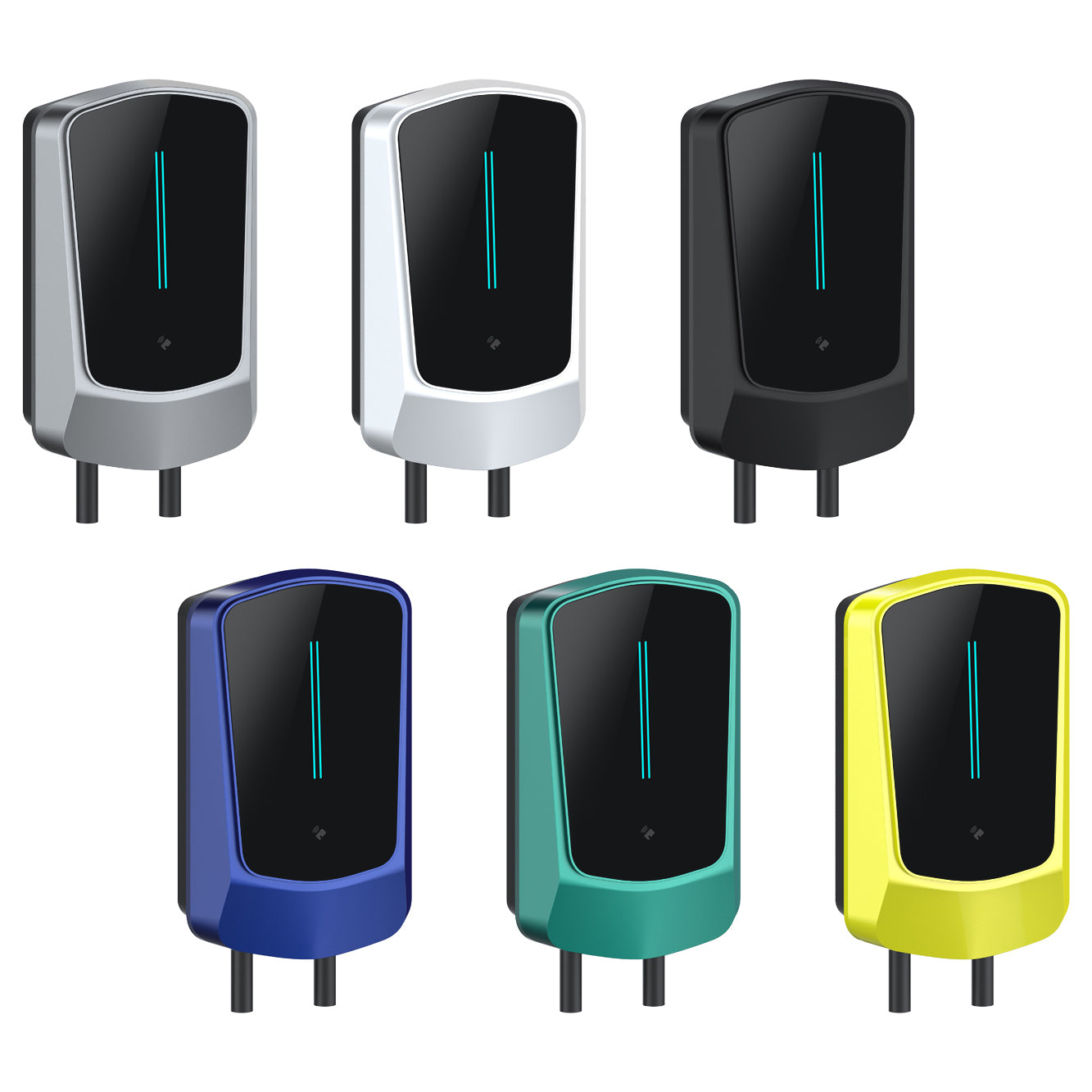

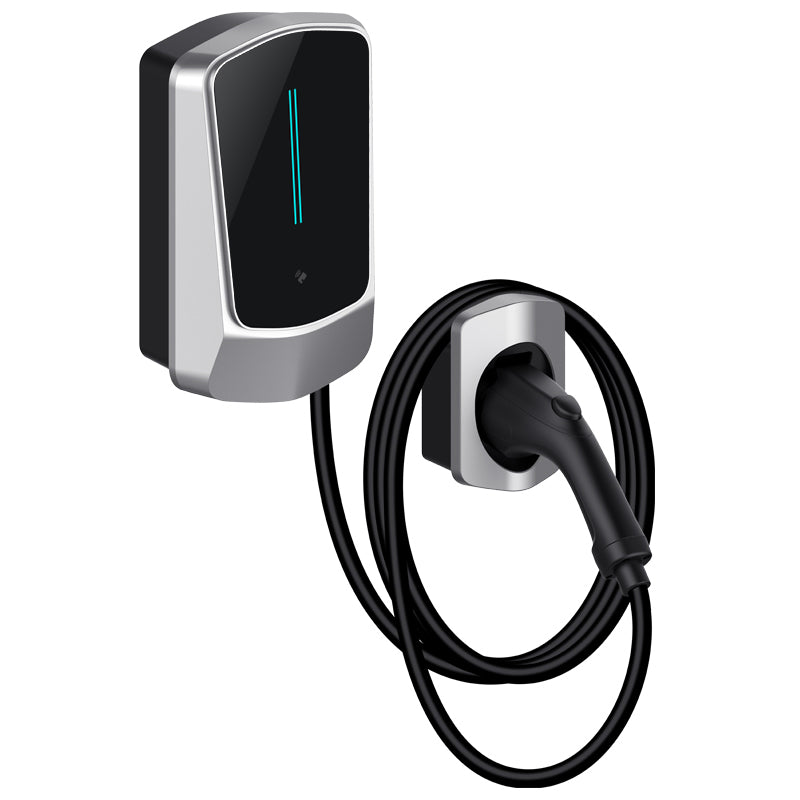

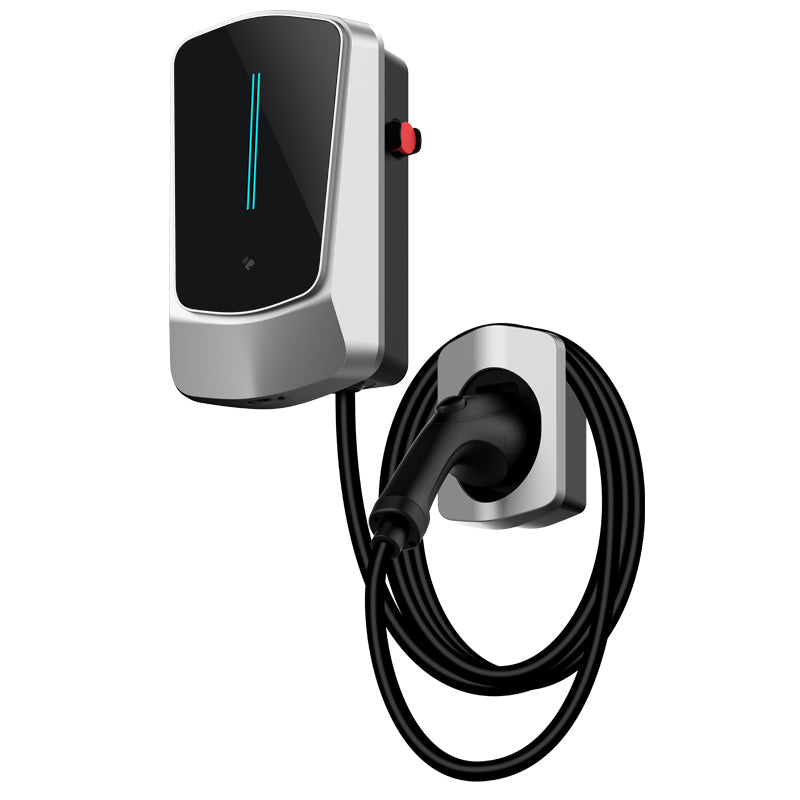

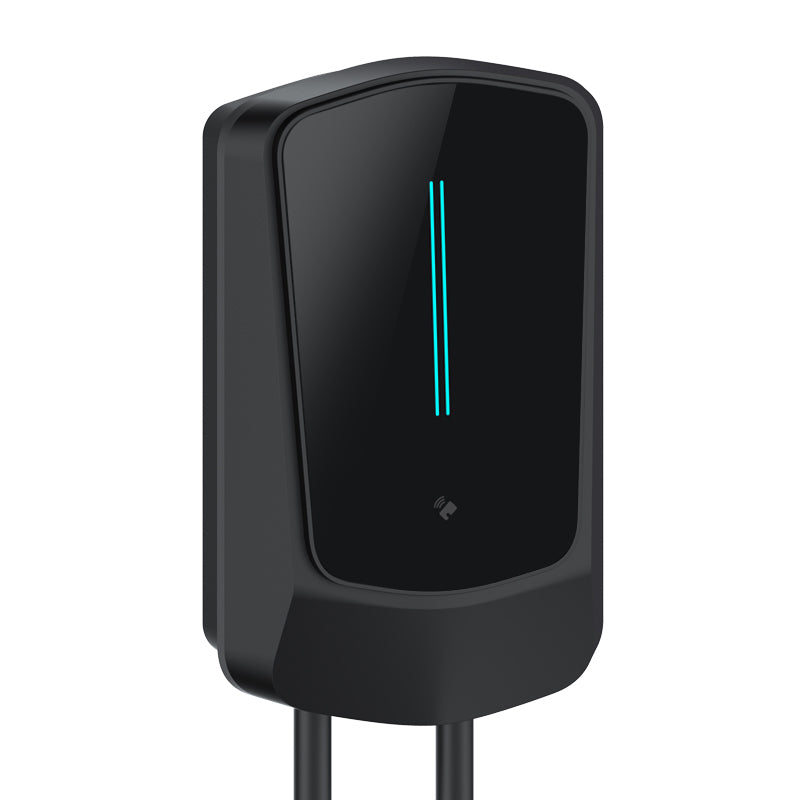

Product Show
