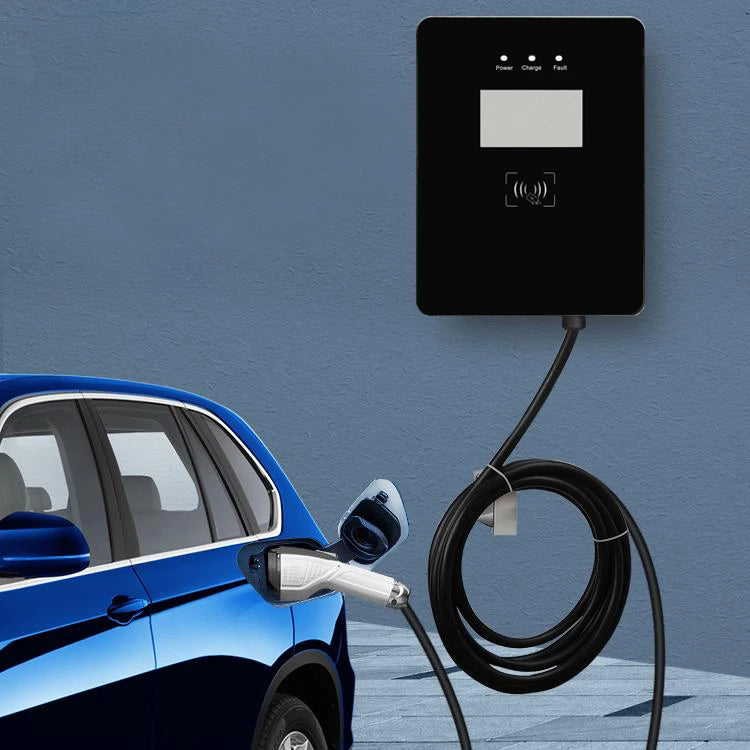

20kw DC fast ev charger with OCPP 1.6 standard CCS2 Combo2 plug gun fast electric vehicle charger
- Gobal Shipping
- Flexible Payment
- Online Service
- Estimated Delivery: Customized Support
- Free Shipping & Returns: On all orders over $200
Secured & trusted checkout with:
Factory Supply New design 20kw OCPP 1.6 DC fast EV charger wall mounted with CCS2 standard plug gun electric vehicle charger:
Dimension (H*W*D)(mm): 653*473*249
Input Frequency (Hz): 50 /60 Hz
Output Voltage Range (V): 200-750VDC
Max. Output Current (A): 80A
Cable Length: Charger Gun: 5m (CCS2)/Customized Acceptable
Advantage:
1. Ultra-wide charging range: 200-750V, BMS power supply: 12/24V;
2. Support charging card, APR WeChat, Alipay and other payment methods;
3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;
4.4.3" color touch screen, with friendly visual interface to present various information;
5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current leakage, emergency stop, etc.
6. Charging options: settings for charging time, SOC level, fee, appointment, etc.
7. Sheet metal shell, with a protection level of outdoor IP54.
Technical Parameters:
|
Product Type |
20KW DC Charger |
|
Product Model |
RSDC750-20KW |
|
Dimension (H*W*D)(mm) |
653*473*249 |
|
Display Mode |
7" Color Capacitive Touch Screen |
|
AC Input Voltage Range (V) |
380±15%, 3 phases +N+PE |
|
Frequency Range (Hz) |
45~66Hz |
|
Power Factor |
≥0.99 |
|
Efficiency |
≥95% |
|
Output Voltage Range (V) |
200-750Vdc |
|
Output Voltage Range under Constant Power (V) |
200-750Vdc |
|
Output Power (kW) |
20 |
|
Max. Output Current (A) |
80 |
|
Charging Interface (Nos.) |
1 |
|
Length of Charging Gun (m) |
5 |
|
Noise (dB) |
<65 |
|
Altitude (m) |
≤2000 |
|
Working Temperature (ºC) |
- 20~50ºC |
|
Storage Temperature (ºC) |
- 40~70 |
|
Average Relative Humidity |
5%~95% |
|
Protective Function |
Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
|
Charging Selection |
Self-provided, timing, quantitation, fixed fee, appointment etc. |
|
Payment Method |
RFID card, Optional Operation Platform |
|
Communication Interface |
CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
|
Communication Between EVSE and Central Server |
OCPP 1.6 |
|
Communication protocol |
DIN70121/ISO15118/IEC61815-3 |
|
Protection Grade / Shell Material |
Outdoor IP54 / sheet metal shell |
|
Product Introduction |
1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.; |
After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.
